Paralellism in HPC

Overview

• Time: 20 min

1. Understand the concept of parallelism in High-Performance Computing (HPC).

2. Learn about different levels of parallelism, including vector parallelism, multi-core parallelism, distributed parallelism, and GPU parallelism.

In this section, we will explore the concept of parallelism in High-Performance Computing (HPC). Parallelism is the ability to perform multiple computations simultaneously, which is essential for achieving high performance in HPC applications. Parallelism can be achieved through various means, including the use of multiple threads, processes, and distributed systems.

You will hear the word concurrency and parallelism used interchangeably, but they are not the same. Concurrency refers to the ability of a system to handle multiple tasks at once, but not necessarily simultaneously. Parallelism, on the other hand, refers to the simultaneous execution of multiple tasks.

Important

All parallel tasks are concurrent, but not all concurrent tasks are parallel.

Threads and Processes

In parallel computing, a thread is the smallest unit of processing that can be scheduled by an operating system. A process is a program in execution, which can contain multiple threads. Threads within a process share the same memory space, allowing for efficient communication and data sharing.

Threads are lightweight compared to processes, as they share the same memory space and resources of the parent process. This allows for faster context switching and communication between threads. Processes, on the other hand, are independent entities with their own memory space.

Difference Between Process and Thread

Feature	Process	Thread
Definition	Independent program with its own memory space and resources.	Lightweight unit of execution within a process.
Memory	Has separate memory space.	Shares memory space with other threads in the same process.
Communication	Uses Inter-Process Communication (IPC), which is slower.	Communicates through shared memory, which is faster.
Overhead	Higher overhead due to resource duplication.	Lower overhead since resources are shared.
Isolation	Fully isolated from other processes.	Not isolated; one thread can affect others in the same process.
Creation Time	Slower to create and manage.	Faster and more efficient to create.
Context Switching	More expensive due to isolated memory.	Cheaper since threads share the same address space.

Explanation

• Context switching is a process where the CPU switches from one thread or process to another.

• This involves saving the state of the current thread or process and loading the state of the next one.

• Context switching is more efficient for threads than processes because threadsthreads share the same memory space, allowing for faster access to shared data and resources.

• Context switching allows OS to have more threads than CPU cores, enabling better resource utilization.

There are different levels of parallelism in HPC, including:

1. Vector Parallelism: This involves performing the same operation on multiple data points simultaneously. It is often used in vector processors and SIMD (Single Instruction, Multiple Data) architectures.

2. Multi-core Parallelism: This type of parallelism utilizes multiple cores within a single processor to execute different threads or processes concurrently. Each core can handle its own thread, allowing for efficient multitasking.

3. Distributed Parallelism: This involves spreading tasks across multiple machines or nodes in a cluster. Each node works on a portion of the task, and they communicate to share results.

4. GPU Parallelism: Graphics Processing Units (GPUs) are designed to handle parallel tasks efficiently. They can execute thousands of threads simultaneously, making them ideal for tasks like image processing, machine learning, and scientific simulations.

Vector Parallelism

Vector parallelism is a type of parallel computing where the same operation is applied to multiple data points simultaneously. This is often achieved using SIMD (Single Instruction, Multiple Data) instructions.

SIMD allow a single instruction to operate on multiple data elements at once.

Multi-core Parallelism

Multi-core parallelism involves using multiple cores within a single processor to execute different threads or processes concurrently. Each core can handle its own thread, allowing for efficient multitasking.

Distributed Parallelism

Distributed parallelism involves spreading tasks across multiple machines or nodes in a cluster. Each node works on a portion of the task, and they communicate to share results.

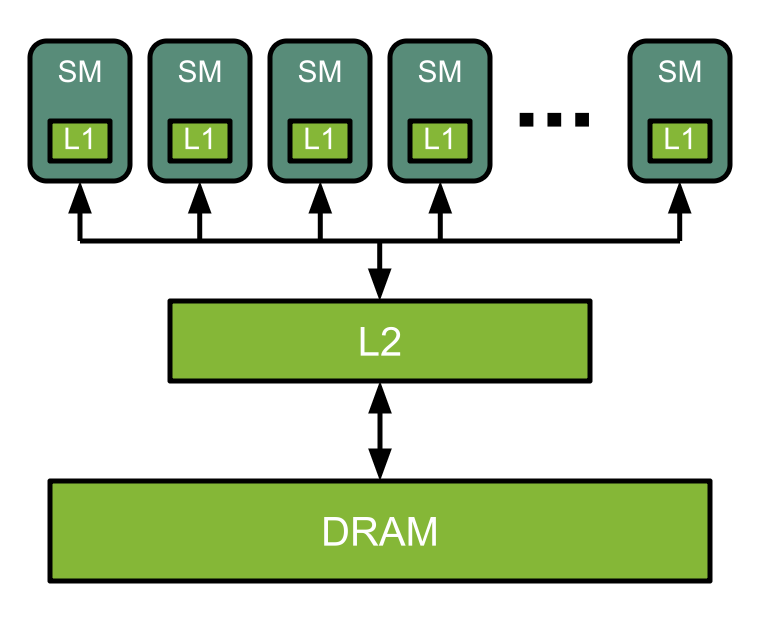

GPU Parallelism

Graphics Processing Units (GPUs) are designed to handle parallel tasks efficiently. They can execute thousands of threads simultaneously, making them ideal for tasks like image processing, machine learning, and scientific simulations.

Key Points

1. Parallelism is the ability to perform multiple computations simultaneously.

2. Threads are lightweight units of execution within a process, while processes are independent programs.

3. Different levels of parallelism include vector parallelism, multi-core parallelism, distributed parallelism, and GPU parallelism.

4. Understanding these concepts is essential for designing efficient HPC applications.
